Node types

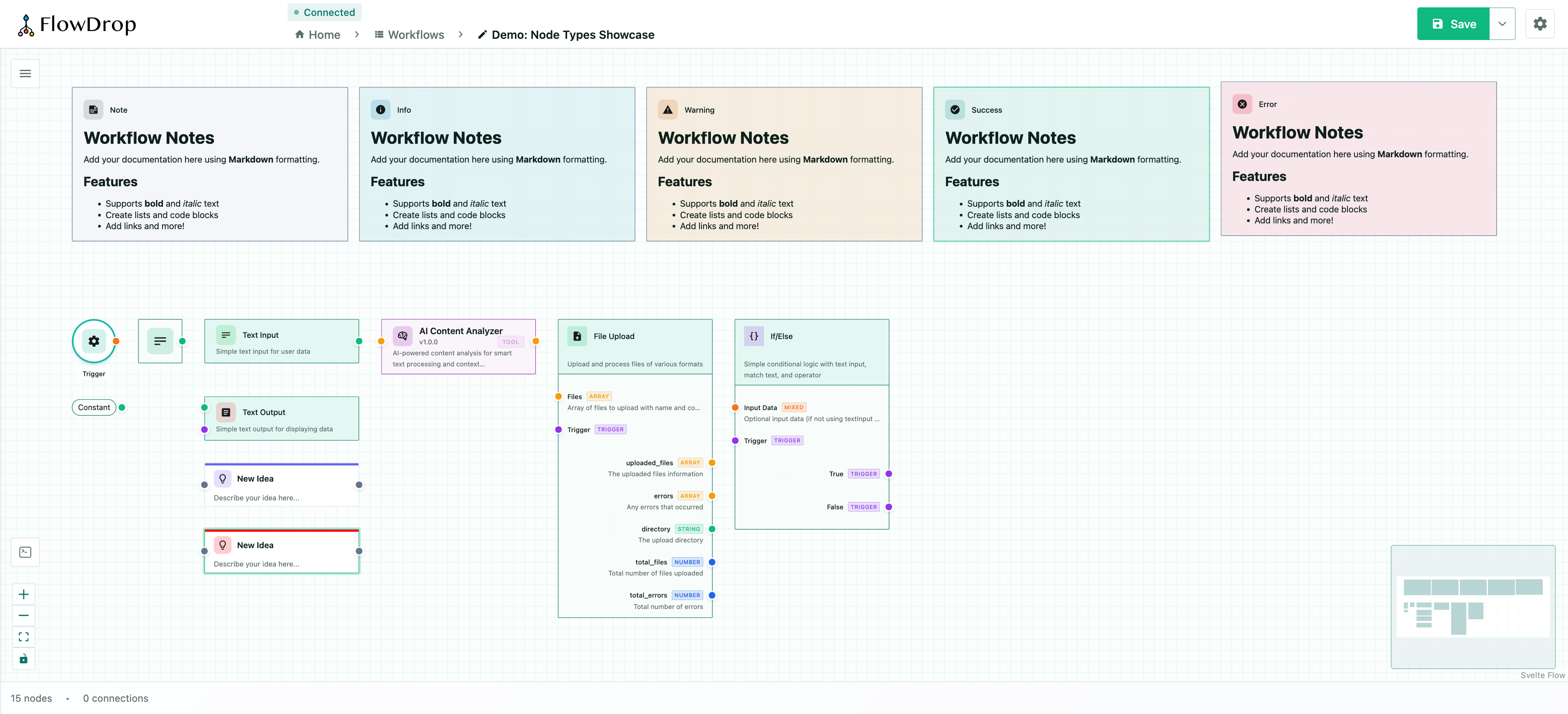

FlowDrop ships with 9 built-in node types, each designed for specific workflow patterns.

Built-in types

Type	Purpose	Description
`default`	Full-featured nodes	Input/output port lists, icon, label, description
`simple`	Compact layout	Header with icon and description, space-efficient
`square`	Icon-only	Minimal design for simple operations
`tool`	AI agent tools	Tool metadata with badge label
`gateway`	Branching logic	Conditional output paths with multiple branches
`terminal`	Start/end points	Circular nodes for workflow entry and exit
`idea`	Conceptual flow	BPMN-like flow nodes for conceptual diagrams
`note`	Documentation	Markdown-enabled sticky notes (no execution)
`atom`	Value supplier	Minimalist label-only pill that supplies a value

For the complete JSON structure, see Node Structure. For port definitions and data types, see Port System & Data Types.

`default`

Full-featured node with input/output port lists, icon, label, and description. Suitable for most workflow steps.

`simple`

Compact layout with header icon and description. Space-efficient for nodes that don't need visible ports.

`square`

Icon-only minimal design. Ideal for simple operations where the icon alone conveys the purpose.

`tool`

Designed for AI agent tools. Displays tool metadata including version, badge label, and description.

`gateway`

Branching logic node with conditional output paths. Supports multiple branches for routing workflow execution.

`terminal`

Circular start/end point nodes. Used to mark workflow entry and exit points.

`idea`

Conceptual idea node for BPMN-like flow diagrams. Lightweight node with a colored top border accent.

`note`

Markdown-enabled sticky notes for documentation. These are non-executing nodes meant for annotations.

A minimalist, label-only node that renders as a compact pill hugging its content — designed for "supplies a value" nodes such as a Constant (and Cast in the future). The atom owns no domain semantics of its own; what it shows and the data type it emits are driven entirely by configuration, so a single node type can back many small value-providing nodes.

The body text resolves in order:

The value of the config key named by valueKey (using the field's oneOf titles when present)
The node's label
The placeholder, rendered dimmed

The bound output port's data type can be driven dynamically from config, and a server- or definition-provided color accents the pill border.

Display and behavior are configured through extensions.ui.atom (AtomUIConfig):

Property	Type	Description
`valueKey`	`string`	Config key whose value becomes the node body. Falls back to `data.label`.
`valueTypeKey`	`string`	Config key holding the selected value's type (a port `dataType` id). The bound output port adopts this type.
`outputPortId`	`string`	Output port id driven by `valueTypeKey`. Defaults to the first output port.
`shape`	`'pill' \| 'rectangle'`	Body shape. `'pill'` (default) is fully rounded; `'rectangle'` is lightly rounded.
`prefix`	`string`	Dimmed affordance rendered before the body (e.g. `'→ '`). Stays visible while the body ellipsizes; hidden in the empty state.
`placeholder`	`string`	Text shown (dimmed) when the resolved body value is empty or unset.
`maxWidth`	`number`	Max body width in px before the label ellipsizes.

{
  "type": "atom",
  "extensions": {
    "ui": {
      "atom": {
        "valueKey": "value",
        "valueTypeKey": "valueType",
        "shape": "pill",
        "prefix": "= ",
        "placeholder": "Set a value…",
        "maxWidth": 120
      }
    }
  }
}

Ports are resolved from the node's definition like any other node, so atoms participate in connection validation and proximity connect normally. The pill is a fixed 40px tall; when it has a single port, the handle centers vertically, and multiple ports distribute evenly.

Connection validation

FlowDrop validates connections automatically:

Type compatibility — only compatible port data types can connect
Cycle detection — prevents circular dependencies (O(V+E) algorithm)
Loopback prevention — nodes cannot connect to themselves

Proximity connect

When dragging a node near compatible ports, FlowDrop can auto-connect them. This is configurable via editor settings:

const app = await mountFlowDropApp(container, {
  settings: {
    editor: {
      proximityConnect: true,
      proximityConnectDistance: 50 // pixels
    }
  }
});

Dynamic ports

Nodes can define user-configurable ports through special config properties:

{
  "dynamicInputs": {
    "type": "array",
    "title": "Input Ports",
    "items": {
      "type": "object",
      "properties": {
        "id": { "type": "string", "title": "Port ID" },
        "name": { "type": "string", "title": "Port Name" },
        "dataType": { "type": "string", "title": "Data Type", "default": "any" }
      }
    }
  }
}

Custom node types

Beyond the built-in types, you can register custom Svelte components as node types. See the Custom Nodes guide for details.
